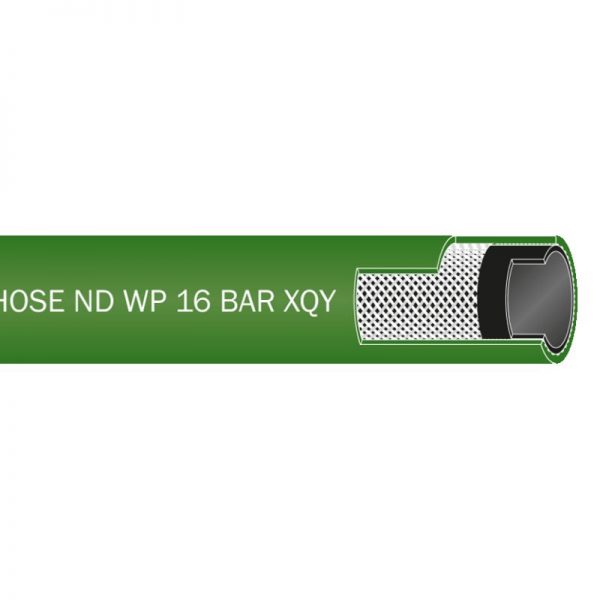

Trelleborg PUSH-LOCK HOSE GREEN
Product code: H.TRE.PUSH-LOCK HOSE GREEN
Green push-lock hose for low-pressure hydraulic and pneumatic lines in the robotics and automotive industries; used with easy-to-fit fittings at up to 16 bar working pressure. Oil-resistant NBR/PVC tube and cover, single textile braid reinforcement. Not suitable for pulsating pressure.
- Colour
- Green
- Material
- NBR/PVC
- Operating temperature
- 110 C, -20 C
- Coil Lengths
- 100m, 40m, 80m
- Usage areas
- Automotive
- Operating pressure
- 16 Bars
Description
Trelleborg PUSH-LOCK HOSE GREEN
Automotive Industries
Ideal for hydraulic pneumatic low pressure lines used in the robotics and automotive industries
was designed as
It is used with easy-to-fit connection hardware at a maximum working pressure of 16 bar (250psi).
Not suitable for intermittent pressure applications.
Advantages
*Delivered as 40, 80 and 100m on a wooden pulley.
*Very good abrasion resistance.
* It is flexible, light and easy to carry.
*Does not contain silicone.
technical description
Inner tube: oil resistant NBR/PVC, black, plain.
Reinforcement: single textile braid.
Coating : abrasion, oil and aging resistant NBR/PVC, green, plain.
Temperature range :
Weather : -20°C/+110°C (peak +125°C).
Water : 0°C/+100°C (peak +110°C).
Hydraulic oils : -20°C/+70°C (peak +90°C).
Water glycol : -20°C/+70°C (peak +90°C).
Electrical properties : non-conductive inner tube, R>1012Ω/m.
Unions/Fittings
It is used with easy-to-fit connection hardware at a maximum working pressure of 16bar (250psi).
Additional Information
It is delivered as 40, 80 and 100m on a wooden pulley. 20m : PE coated on pallet
delivered in coils.
