Trelleborg KLEGAINE GPU-S
Product code: H.TRE.KLEGAINE GPU-S

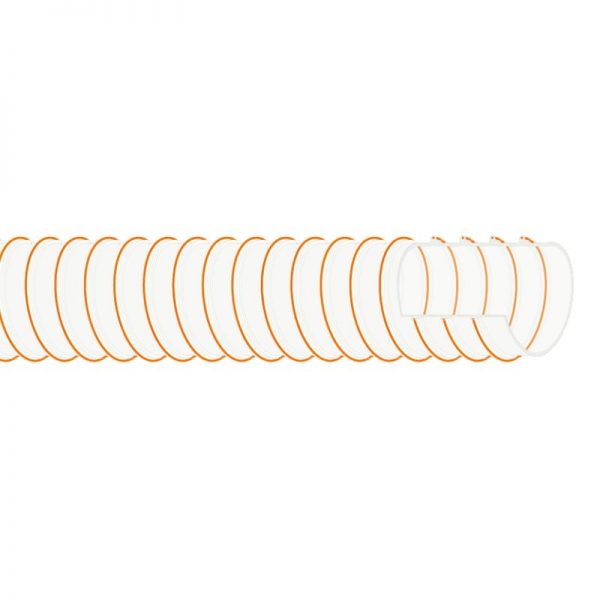

Polyurethane hose for conveying highly abrasive materials such as metal swarf, sand, gravel and ice in glass, steel, mineral processing and cement plants, ports and large industrial sweepers. Very dense ether-based transparent wall, copper-plated steel spring. -30 °C to +100 °C.
- Colour
- Transparent
- Spiral Reinforcement
- Spiral Reinforcement
- Material
- Polyurethane
- Operating temperature
- 100 C, -30 C
- Coil Lengths
- 10m
- Usage areas
- Glass, Cement, Industry, Sand
Description
Trelleborg KLEGAINE GPU-S
Industrial hoses/Polyurethane
It is extremely durable.
Glass plants, steel industry, mineral processing, ports, cement plants, large industrial
metal shavings, sand, gravel, ice, etc. in vacuum cleaners. Ideal for handling highly abrasive materials such as
Advantages
*Unmatched resistance to abrasion and puncture.
*Crush, pressure, vacuum resistant copper plated steel helix. Welded with polyurethane body.
*Very smooth inner surface provides optimum flow.
*High resistance to ozone and UV.
*Resistance to oils, solvents and industrial chemicals in the medium-density vapor phase.
technical description
Very dense ether-based polyurethane body, transparent, smooth inner surface.
Reinforcement: copper-plated steel spring providing protection in the wear zone.
Temperature range: -30°C to +100°C.
Special features: Wear ISO 4649: 30mm3. It does not contain halogen and plasticizers.
Unions/Fittings
Standard : clamp connection.
Option : can be screwed into the unions.
Additional Information
Technical data for operating conditions at 20°C.
Specifications
| Inner diameter | Add to quote list |
|---|---|
| 1 5/8" - 40mm | Add |
| 2" - 51mm | Add |
| 2 3/8" - 60mm | Add |
| 2 1/2" - 63mm | Add |
| 2 3/4" - 70mm | Add |
| 3" - 76mm | Add |
| 3 3/16" - 80mm | Add |
| 3 1/2" - 90mm | Add |
| 4" - 102mm | Add |
| 4 3/8" - 110mm | Add |
| 4 3/4" - 121mm | Add |
| 5" - 127mm | Add |
| 5 1/2" - 140mm | Add |
| 6" - 152mm | Add |
| 6 1/4" - 159mm | Add |
| 7" - 178mm | Add |
| 8" - 203mm | Add |
| 9" - 229mm | Add |
| 9 3/4" - 248mm | Add |
| 11 3/4" - 298mm | Add |
