Trelleborg KLEGAINE GPU-FG
Product code: H.TRE.KLEGAINE GPU-FG

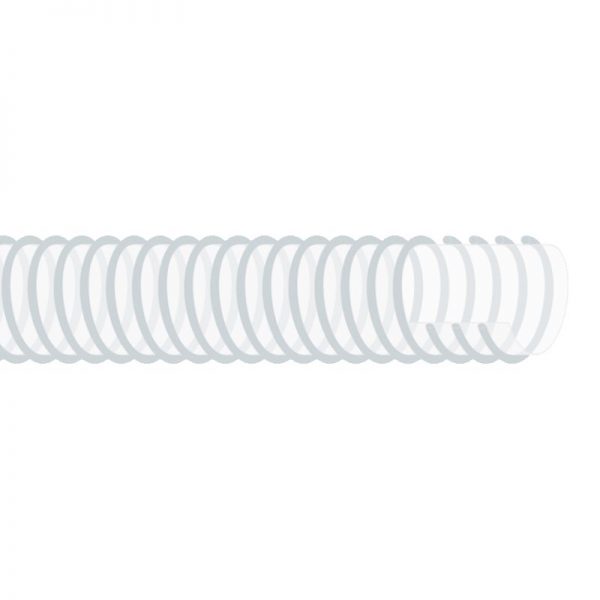

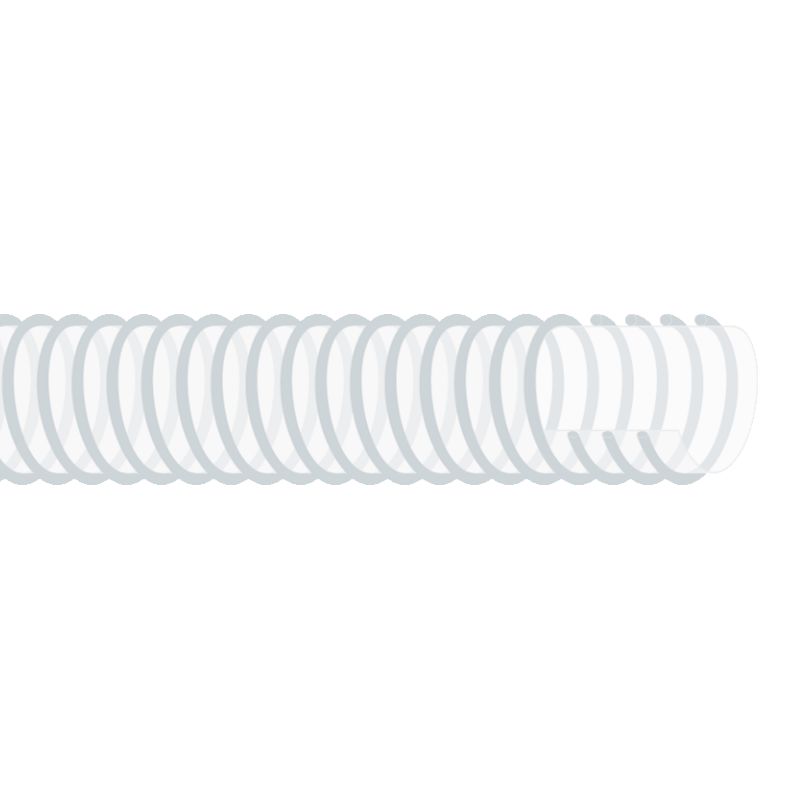

Food-grade polyurethane hose for suction and conveying of abrasive materials, powders and granules in the food industry and of drugs in pharmaceutical laboratories. Rigid PVC spring reinforcement embedded in a transparent ether-based polyurethane wall; smooth bore. -30 °C to +80 °C.
- Colour
- Transparent
- Spiral Reinforcement
- Spiral Reinforcement
- Material
- Polyurethane
- Operating temperature
- -30 C, 80 C
- Coil Lengths
- 20m
- Usage areas
- Industry, General Food, Dust
Description
Trelleborg KLEGAINE GPU-FG
Industrial hoses/Polyurethane
Food grade quality, extremely smooth.
Extraction of abrasive materials, powders and granules in the food industry and drugs in pharmaceutical laboratories and
Ideal for transport.
Industrial vacuums and floor care applications, lawn mowers and rock wool projection.
woodworking industries.
Cable duct for robotics, x-ray machines.
Advantages
*Food grade polyurethane.
*High resistance against abrasion, puncture and impacts.
*Unique flexible strength thanks to PVC helix and polyurethane body providing perfect bonding.
*High resistance against hydrolysis and microbiological attacks.
*Lightweight, flexible at low temperature. Smooth inner surface provides optimum flow.
*High resistance to ozone and UV.
*High resistance to many oils, solvents, medium density, vapor phase industrial chemicals.
technical description
Ether-based polyurethane body, transparent, smooth inner surface.
Reinforcement: Impact resistant rigid PVC spring embedded in the polyurethane body.
Temperature range: -30°C to +80°C.
Electrical properties : Non-conductive.
Option : PVC coated copper wire to achieve electrical equipotential bonding.
Special features: Wear ISO 4649: 40mm3.
Food grade quality.
Standard/Approval: EU regulation 10/2011/EC.
Unions/Fittings
Standard : clamp connection.
Option : can be screwed into the unions.
Additional Information
Technical data for operating conditions at 20°C.
Specifications
| Inner diameter | Add to quote list |
|---|---|
| 3/4" - 19mm | Add |
| 1" - 25mm | Add |
| 1 3/16" - 30mm | Add |
| 1 1/4" - 32mm | Add |
| 1 3/8" - 35mm | Add |
| 1 1/2" - 38mm | Add |
| 1 5/8" - 40mm | Add |
| 1 3/4" - 44mm | Add |
| 2" - 51mm | Add |
| 2 3/8" - 60mm | Add |
| 2 1/2" - 63mm | Add |
| 2 3/4" - 70mm | Add |
| 3" - 76mm | Add |
| 3 3/16" - 80mm | Add |
| 3 1/2" - 90mm | Add |
| 4" - 102mm | Add |
| 4 3/4" - 121mm | Add |
| 5" - 127mm | Add |
| 5 1/2" - 140mm | Add |
| 6" - 152mm | Add |
| 6 1/4" - 159mm | Add |
| 7" - 178mm | Add |
| 8" - 203mm | Add |
| 9 3/4" - 248mm | Add |
