TC 24AS
Product code: H.TC24AS

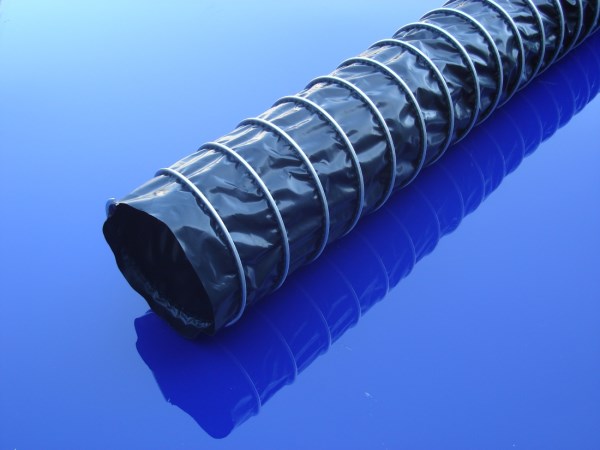

Heat-resistant flex hose for paint shops, pharmaceutical and chemical plants, the paint, wood and paper industries, and conveying explosive gases and vapors. PTFE-laminated glass fiber fabric wall and external galvanized steel helix; 4" to 16" ID, -70 °C to +280 °C.
- Colour
- Black
- Spiral Reinforcement
- Spiral Reinforcement
- Operating temperature
- 280 C, -70 C
- Coil Lengths
- 10m, 20m
- Usage areas
- In Paint Shops, Steam, Industry
Description
TC 24AS
MATERIEL:
Fabric Wall: PTFE laminated glass Fiber fabric
• Weight: 155-270 gr/m2
• Tensile Strength: 800 N/5 cm 1200 N/5 cm
• Joint Thickness: 0.08 – 0.25 mm
• Color : Black
Outer Spiral : Galvanized Steel
APPS:
• In paint shops
• Pharmaceutical industry
• In places where electric arc may occur
• In low pressure applications
• Discharge of solvents to outside environment
• Explosive gases and vapors that can spark
in transit
• In Chemical Facilities
• Paint, wood and paper industry
FEATURES:
• Extremely flexible
• Excellent weather resistance
• Hose inner wall has non-stick surface
• Surface resistance Ro<10 6Ohm
• Low bending radius
• Excellent chemical resistance
• Resistant to low and high temperatures
• Special joining method allows the hose to be spiral and
lock the fabric firmly together
guarantees.
• Compressible 1:6
• Hose outer wall material is quite durable
• Fluid cannot be accommodated on the surface at the optimum level.
• Outer spiral protects against wear
Specifications
| Inner diameter | Add to quote list |
|---|---|
| 4" - 102mm | Add |
| 4 1/2" - 114mm | Add |
| 5" - 127mm | Add |
| 5 1/4" - 130mm | Add |
| 5 1/2" - 140mm | Add |
| 6" - 152mm | Add |
| 6 1/4" - 159mm | Add |
| 7" - 178mm | Add |
| 8" - 203mm | Add |
| 9" - 229mm | Add |
| 10" - 254mm | Add |
| 11" - 279mm | Add |
| 12" - 305mm | Add |
| 12 1/2" - 318mm | Add |
| 14" - 356mm | Add |
| 16" - 406mm | Add |
