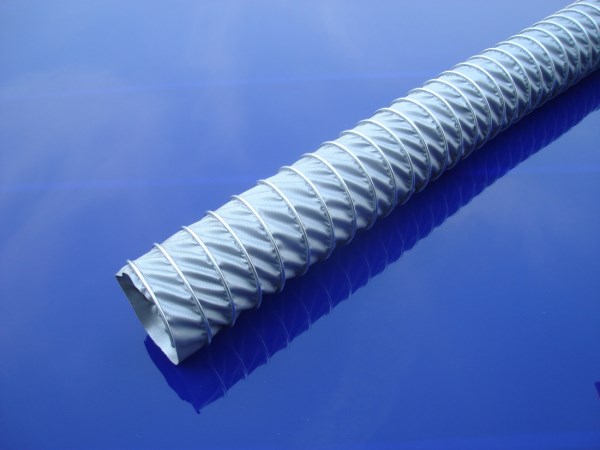

TC 04
Product code: H.TC04
Flex hose for low-pressure applications such as hot air and exhaust transfer, tent heaters, hot air units and foundries. E-glass fiber fabric wall coated with silicone on both sides and external galvanized steel helix; withstands 260 °C continuously, 3 1/2" – 16".
- Colour
- Grey
- Operating temperature
- 260 C, -60 C
- Coil Lengths
- 10m, 20m
- Usage areas
- Exhaust, Air, Industry
Description
TC 04
MATERIEL:
Hose Wall: Silicone coated E-glass fiber fabric
• Weight: 590 gr/m2
• Check. strength : Warp 4277 N/5cm, Weft 2757 N/5cm
• Thickness: 0.45 mm
• Color : Gray
• Coating: Double-sided 80/80 gr/m2
gray silicone
• Flame class: DIN 66083, TNO 3883 Class1
Freie and Hansestadt Hamburg 182.85.6
Outer Spiral : Galvanized Steel
APPS:
• Hot air transfer
• Exhaust transfer
• In the defense industry
• In ground support equipment
• In low pressure applications
• In tent heaters
• In hot air devices
• In foundries
FEATURES:
• Good temperature resistance (260 C continuous)
• Low bending radius
• Good compression ratio: 1:7
• External galvanized spiral against abrasion
• Production with strong mechanical joining technique
• Light
Specifications
| Inner diameter | Add to quote list |
|---|---|
| 3 1/2" - 90mm | Add |
| 4" - 102mm | Add |
| 4 3/8" - 110mm | Add |
| 5" - 127mm | Add |
| 5 1/4" - 130mm | Add |
| 5 1/2" - 140mm | Add |
| 6" - 152mm | Add |
| 6 1/4" - 159mm | Add |
| 7" - 178mm | Add |
| 8" - 203mm | Add |
| 9" - 229mm | Add |
| 10" - 254mm | Add |
| 11" - 279mm | Add |
| 12" - 305mm | Add |
| 12 1/2" - 318mm | Add |
| 14" - 356mm | Add |
| 16" - 406mm | Add |
