MONTECARLO - A1
Product code: MFD901

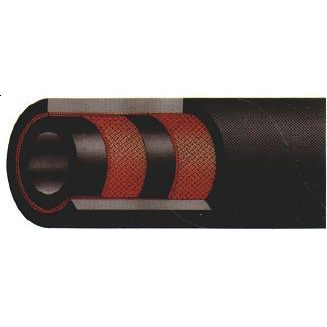

Flexible, flame-retardant, low-permeability fuel delivery hose for fuel discharge into tanks on marine vessels. Low-permeability nitrile rubber tube, synthetic textile reinforcement and wrapped neoprene cover resistant to seawater and flame. 25/32" – 2 3/8" diameters, 10 bar; ISO 7840 A1.
Description
- Product Name: MONTECARLO - A1
- Product Code: MFD901
Marine Fuel Delivery Hose, A1
- Area of Use: Flexible, flame retardant, low permeability for fuel discharge into fuel tanks on marine vessels.
- Substrate: Special Low Permeability Nitrile Black Rubber.
- Reinforcement Layer: High Strength Synthetic Textile.
- Top Layer: Seawater, Flame, Abrasion and Weather Resistant, Bandaged, Special Neoprene Black Rubber.
Specifications
 ID |
 OD |
 WP |
 BP |
 BR |
 W |
 L |
Add to quote list | |||
|---|---|---|---|---|---|---|---|---|---|---|
| ID in | ID mm | OD mm | WP bar | WP psi | BP bar | BP psi | BR mm | W g/m | L m | |
| 25/32" | 20 | 32 | 10 | 145 | 30 | 435 | 200 | 720 | 40-61 | Add |
| 7/8" | 22 | 34 | 10 | 145 | 30 | 435 | 220 | 780 | 40-61 | Add |
| 1" | 25.4 | 37.5 | 10 | 145 | 30 | 435 | 254 | 870 | 40-61 | Add |
| 1 3/16" | 30 | 42 | 10 | 145 | 30 | 435 | 300 | 1000 | 40-61 | Add |
| 1 1/4" | 32 | 45 | 10 | 145 | 30 | 435 | 320 | 1140 | 40-61 | Add |
| 1 3/8" | 35 | 48 | 10 | 145 | 30 | 435 | 350 | 1230 | 40-61 | Add |
| 1 1/2" | 38 | 51 | 10 | 145 | 30 | 435 | 380 | 1345 | 40-61 | Add |
| 1 9/16" | 40 | 53 | 10 | 145 | 30 | 435 | 400 | 1405 | 40-61 | Add |
| 1 3/4" | 44.5 | 58 | 10 | 145 | 30 | 435 | 445 | 1540 | 40-61 | Add |
| 2" | 50.8 | 64 | 10 | 145 | 30 | 435 | 508 | 1730 | 40-61 | Add |
| 2 3/8" | 60 | 74 | 10 | 145 | 30 | 435 | 600 | 2200 | 40-61 | Add |
ISO 7840 A1 CE, RINA APPROVED, SAE J 1527 USCG TYPE A1-R1 LLOYD APPROVED
-35°C / +100°C-31°F / +212°F
Branding : Transfer Embossed
| Norm | ISO 7840 A1 SAE J1527 USCG TYPE A1-R1 |
Colour |  |
|---|
